TempoTec Sonata E35 Type C To 3.5MM Headphone Amplifier AMP USB DAC PCM32bit/384kHz&DSD256 For Android Phone&PC&MAC DUAL CS43131

$62.91
후기 작성하기
| 질문하기

TempoTec Sonata E35 Type C To 3.5MM Headphone Amplifier Adapter PCM32bit/384kHz&DSD256 For Android Phone&PC MAC DAC AMP DUAL CS43131 DAC: DUAL CS43131 SNR: 128dBTHD+N: 113dBOUTPUT LEVEL: 2VRMSOUTPUT POWER: 80 mW/32ohmFrequency: 0-40KHZ /+- 0.5dBCrosstalk: -95dBSUPPORT: PCM 32Bit/384kHz DSD256(NATIVE) DSD128(DOP)SUPPORT: HW VOLUME CONTROL SUPPORT: PC MAC and AndoidSUPPORT: W7 W8 W10 &ASIO...

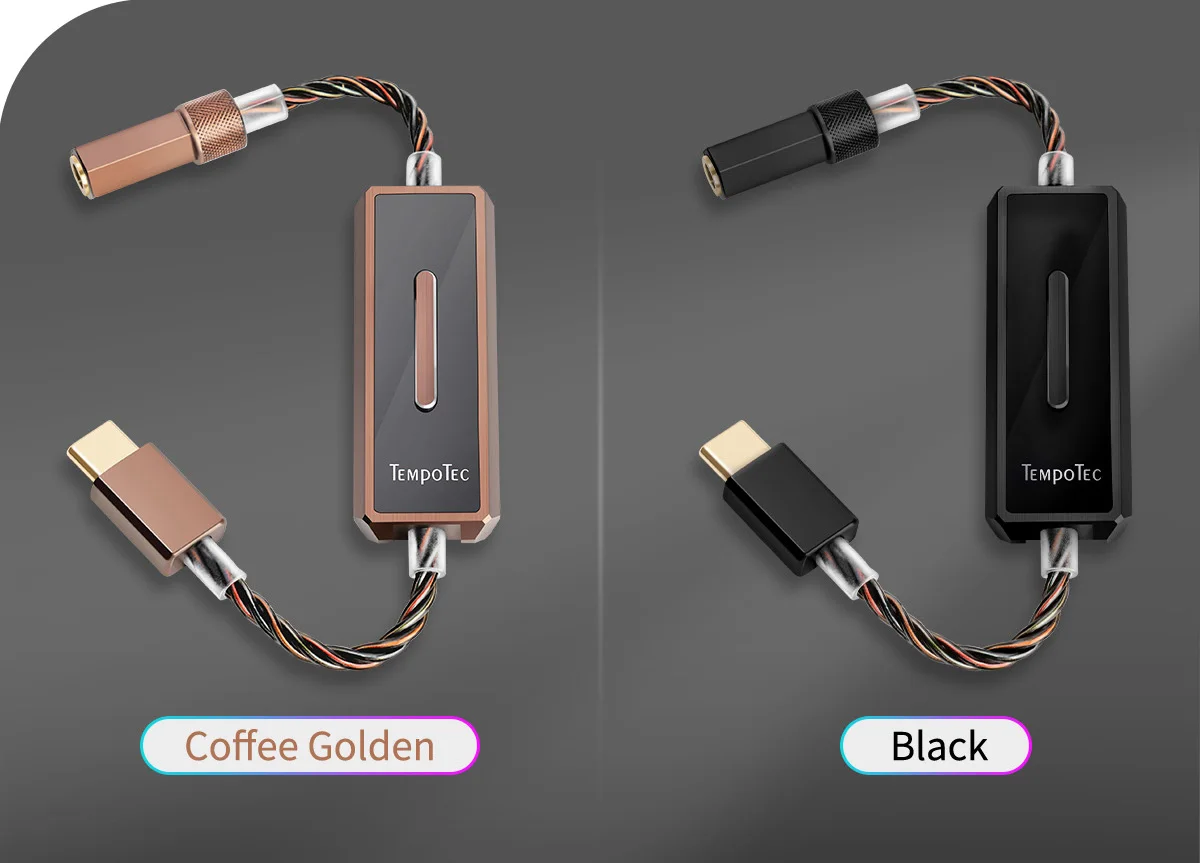

color: Black

Black
Coffee golden
sold in last hours
Description



TempoTec Sonata E35 Type C To 3.5MM Headphone Amplifier Adapter PCM32bit/384kHz&DSD256 For Android Phone&PC MAC DAC AMP DUAL CS43131

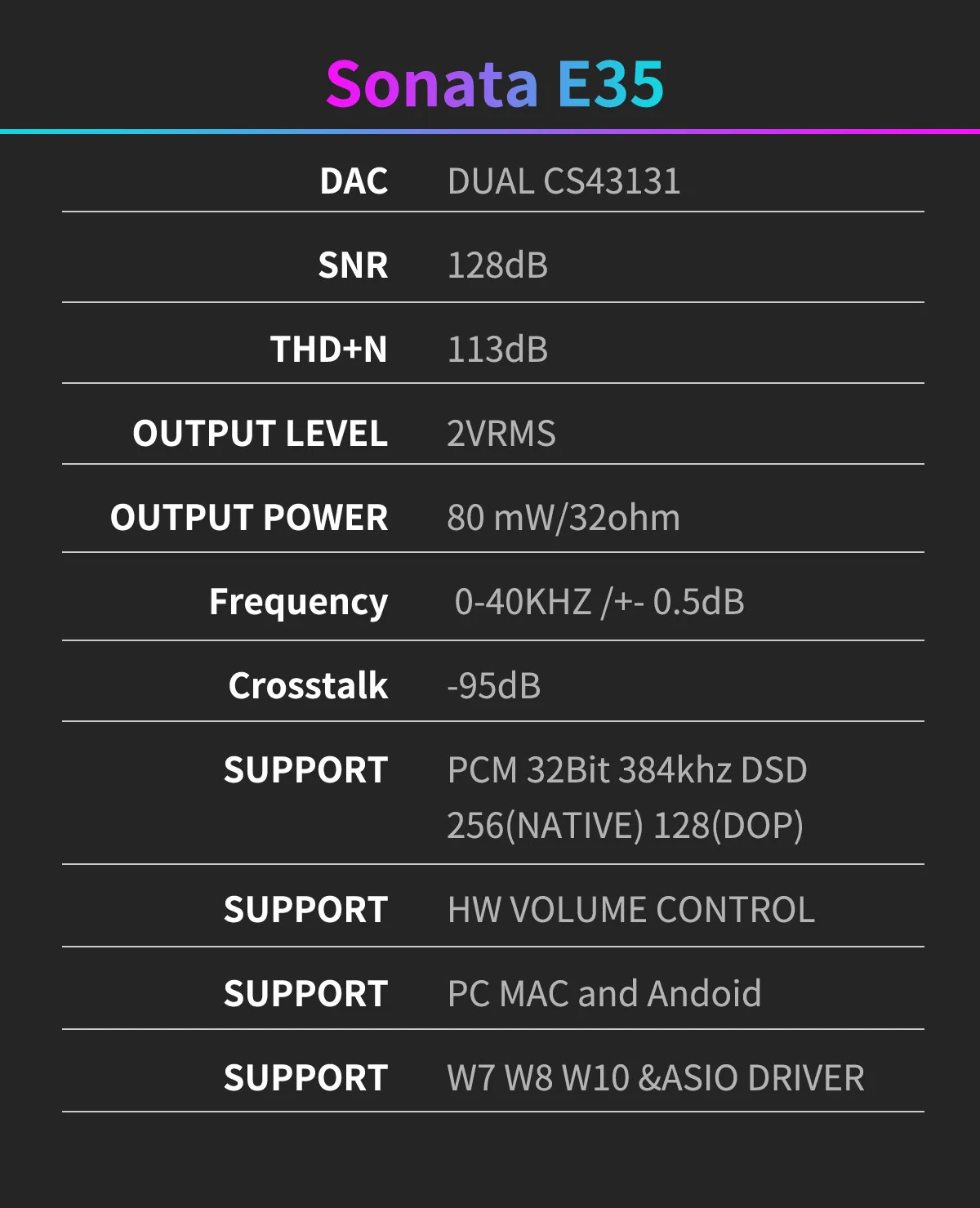

DAC: DUAL CS43131
SNR: 128dB
THD+N: 113dB
OUTPUT LEVEL: 2VRMS
OUTPUT POWER: 80 mW/32ohm
Frequency: 0-40KHZ /+- 0.5dB
Crosstalk: -95dB
SUPPORT: PCM 32Bit/384kHz DSD256(NATIVE) DSD128(DOP)
SUPPORT: HW VOLUME CONTROL
SUPPORT: PC MAC and Andoid
SUPPORT: W7 W8 W10 &ASIO DRIVER



Instructions

1. Sonata E35 can be compatible with most of the Android phones which has TYPE C interface on the market. Please make sure that you have turned the “ OTG function" and “ USB debugging mode” on of your android phone.Please find these two switches under “developer options” on your phone first.

2. Sonata E35 is a plug-and-play device on the Apple computer system, please select it as the default audio output device in the "MIDI device" after connecting the product. (In this case, does not support DSD music, supports PCM music)

4. Sonata E35 can work directly on windows system which is latter than WINDOWS 10 (version 1703) without installing any USB audio driver. But if your opertating system us Windows 7 or Windows 8, you have to install our professional USB audio driver to enjoy music, especial DSD music. (It is strongly recommended that you install our ASIO driver to feel every detail of the music )

Professional USB audio driver (V3.3.136.1) download link:
http://www.tempotec.com.cn//en/3-Support/index.htm

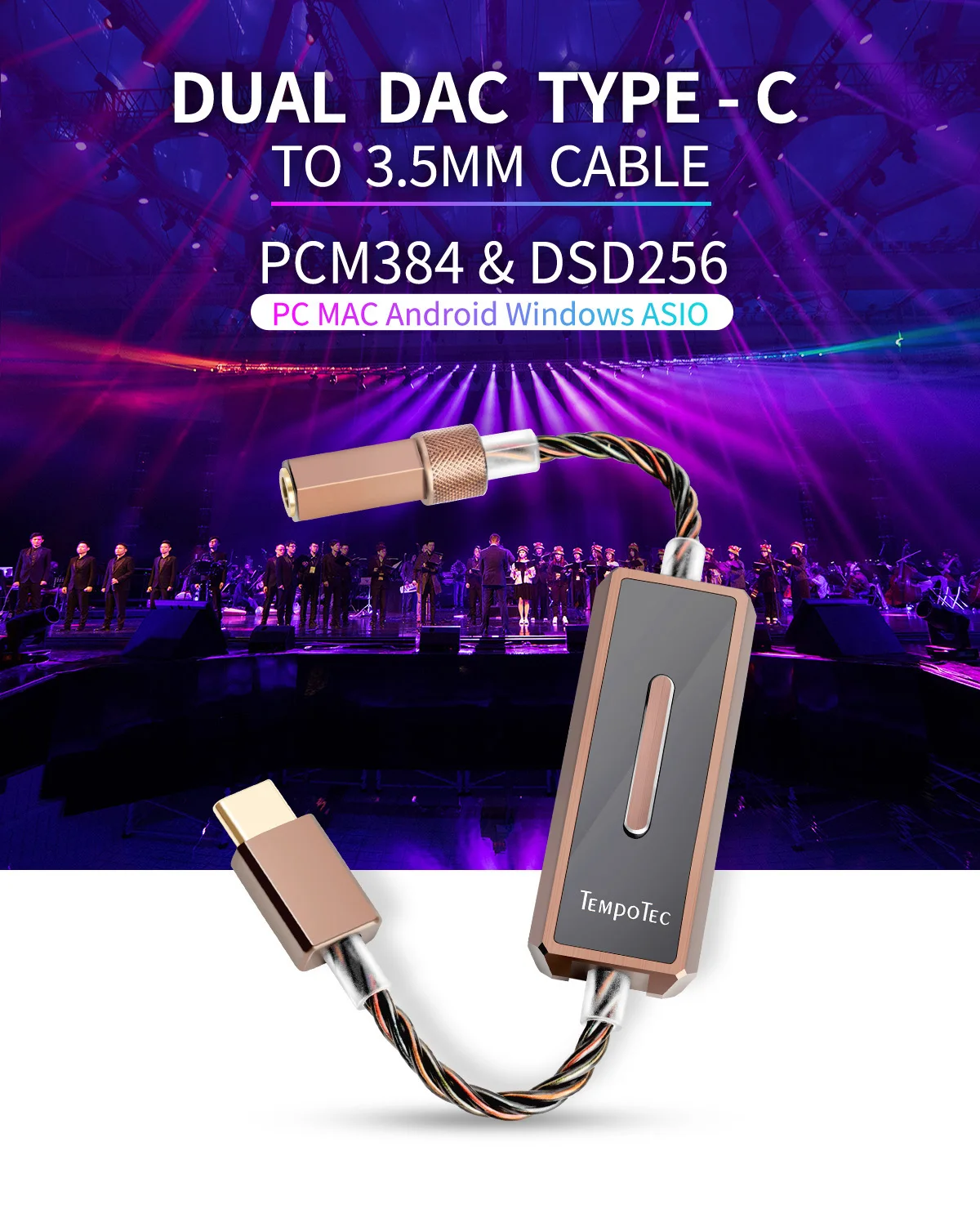

DUAL DAC TYPEC TO 3.5 MM CABLE

PCM 32Bit/384kHz DSD256 Support Windows&MAC&Android

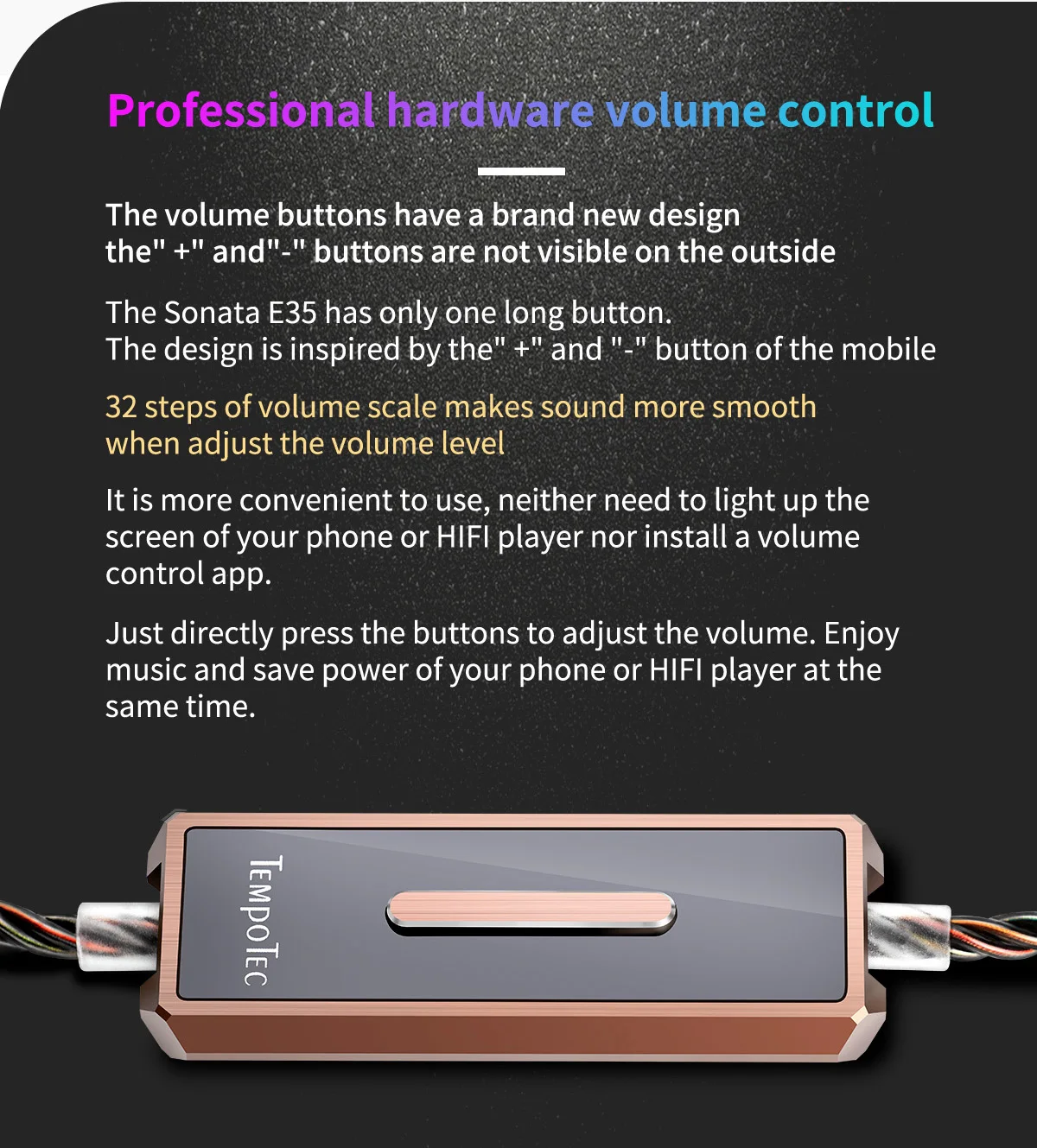

Professional hardware volume control

The volume buttons have a brand new design, the" +" and"-" buttons are not visible on the outside.

The Sonata E35 has only one long button. The design is inspired by the" +" and "-" button of the mobile phone.

32 steps of volume scale makes sound more smooth when adjust the volume level

It is more convenient to use, neither need to light up the screen of your phone or HIFI player nor install a volume control app. Just directly press the buttons to adjust the volume. Enjoy music and save power of your phone or HIFI player at the same time.

DUAL CS43131

High SNR
Powerful OUTPUT

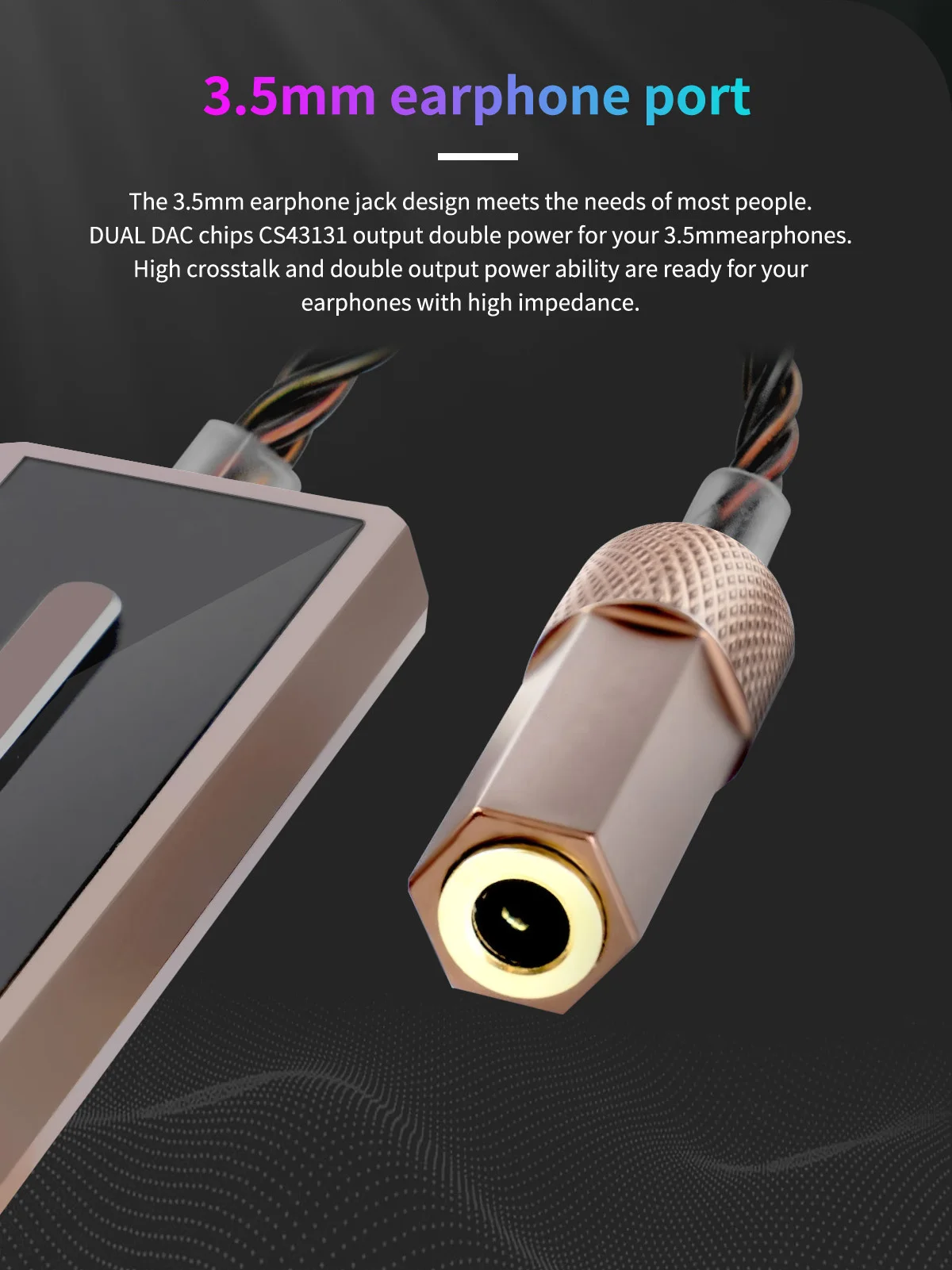

3.5 MM earphone port

The 3.5mm earphone jack design meets the needs of most people.

DUAL DAC chips CS43131 output double power for your 3.5mm earphones. High crosstalk and double output power ability are ready for your earphones with high impedance.

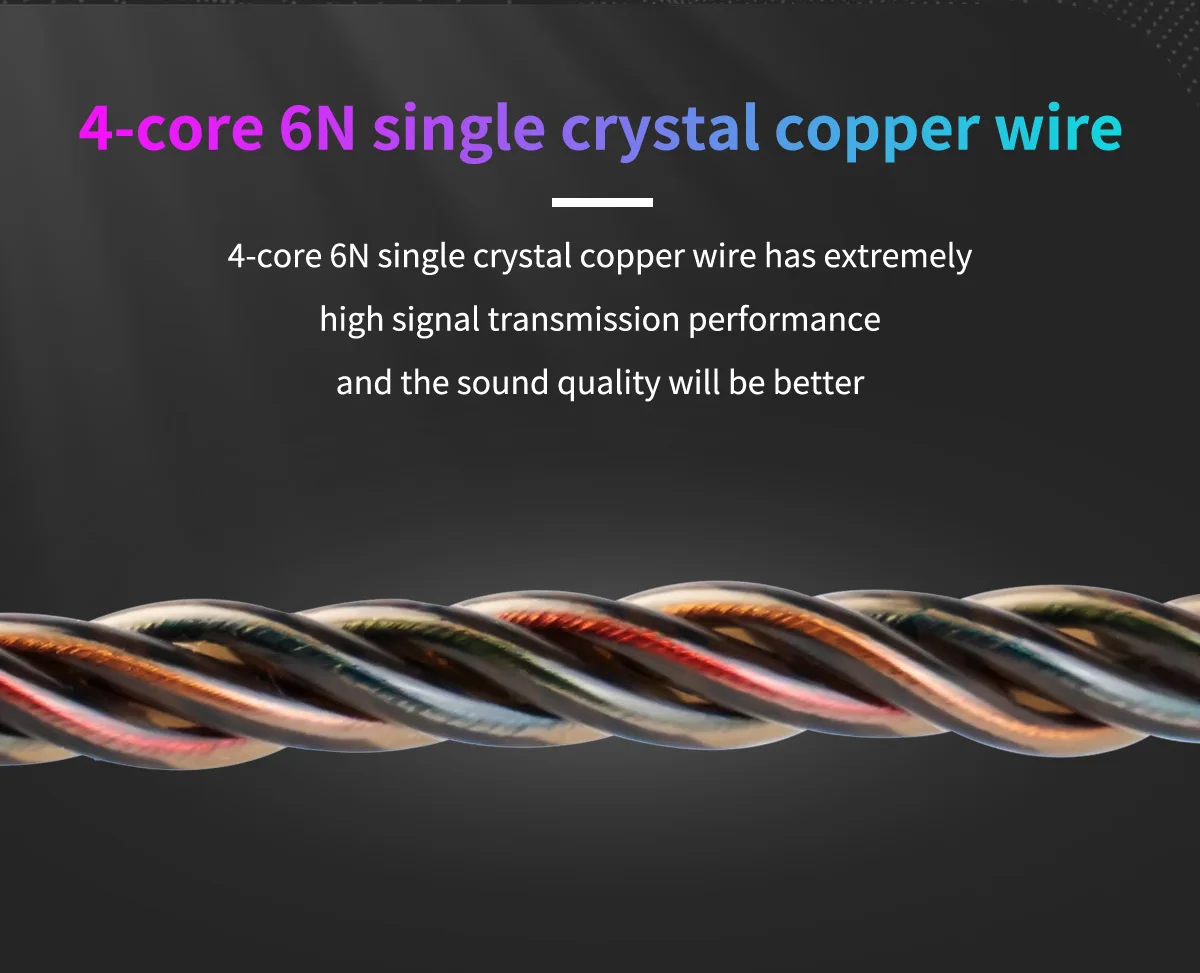

4-core 6N single crystal copper wire

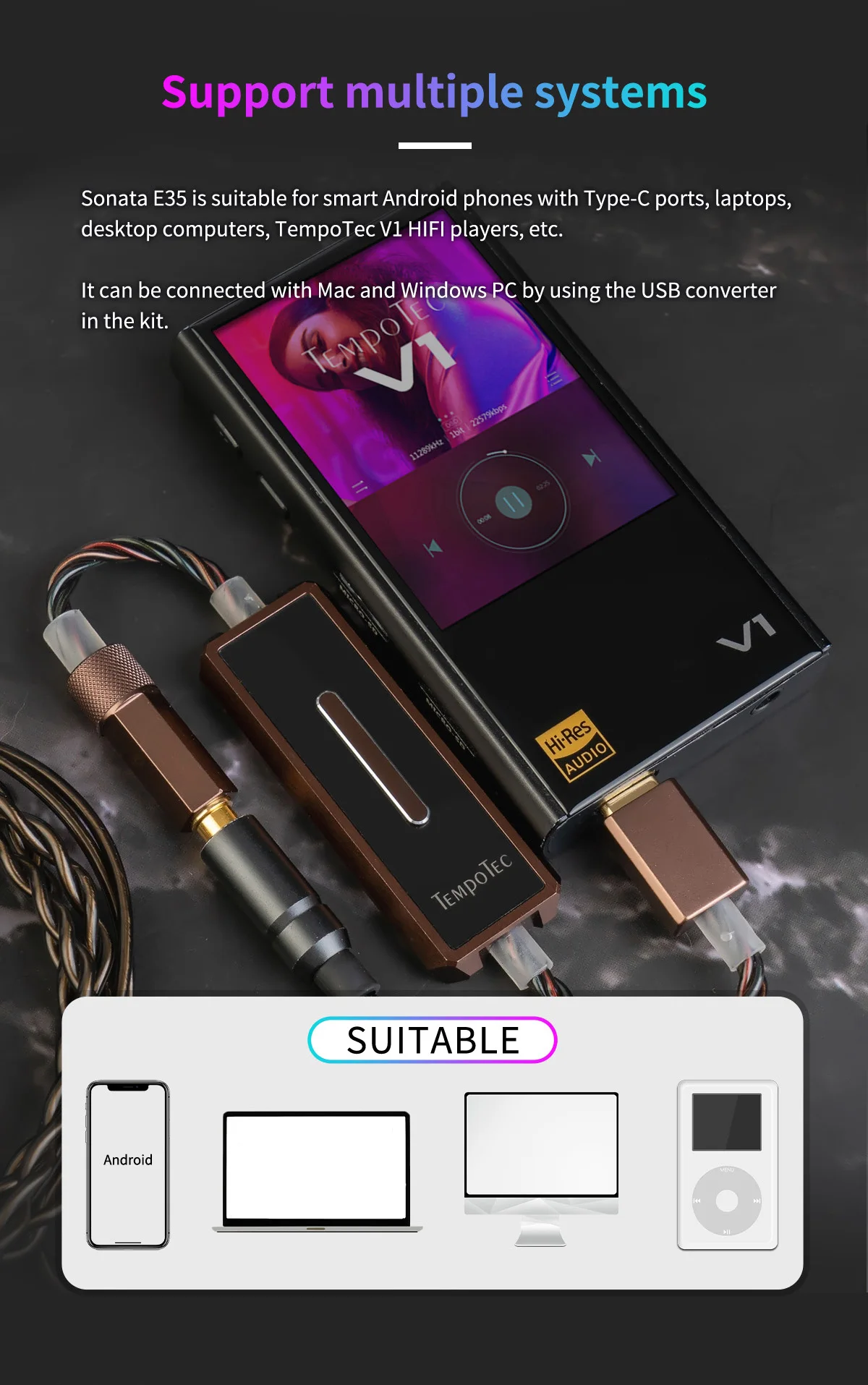

Support multiple systems

Sonata E35 is suitable for smart Android phones with Type-C ports, laptops, desktop computers, TempoTec V1 HIFI players, etc.

It can be connected with Mac and Windows PC by using the USB converter in the kit.


Usage tips for E35:
Sonata E35 can be compatible with most of the Android phones which has TYP-C port on the market.

Please make sure that you have turned the “OTG function" if has and “USB debugging mode” on of your android phone.Please find these two switches under “developer options” on your phone first.

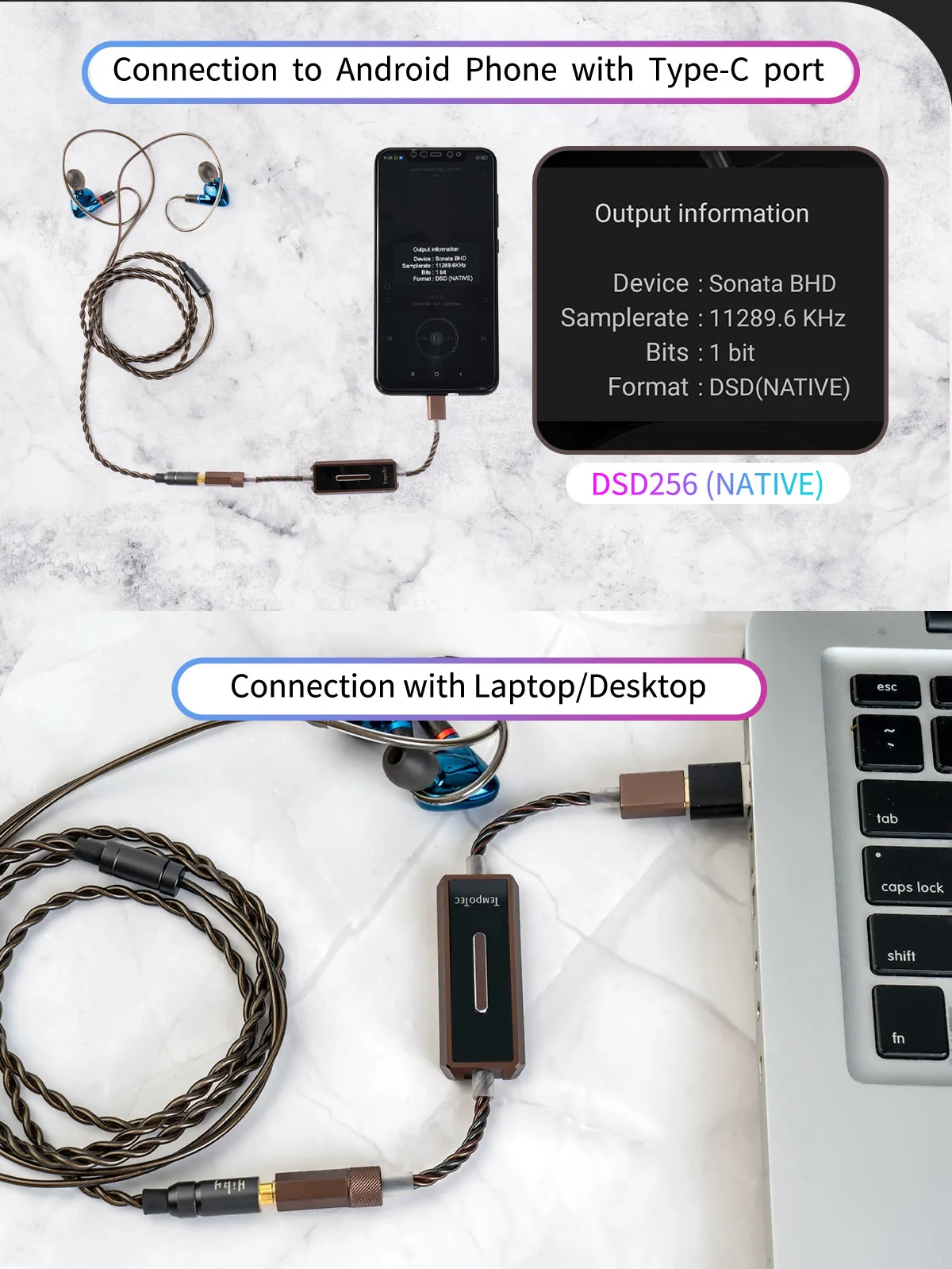

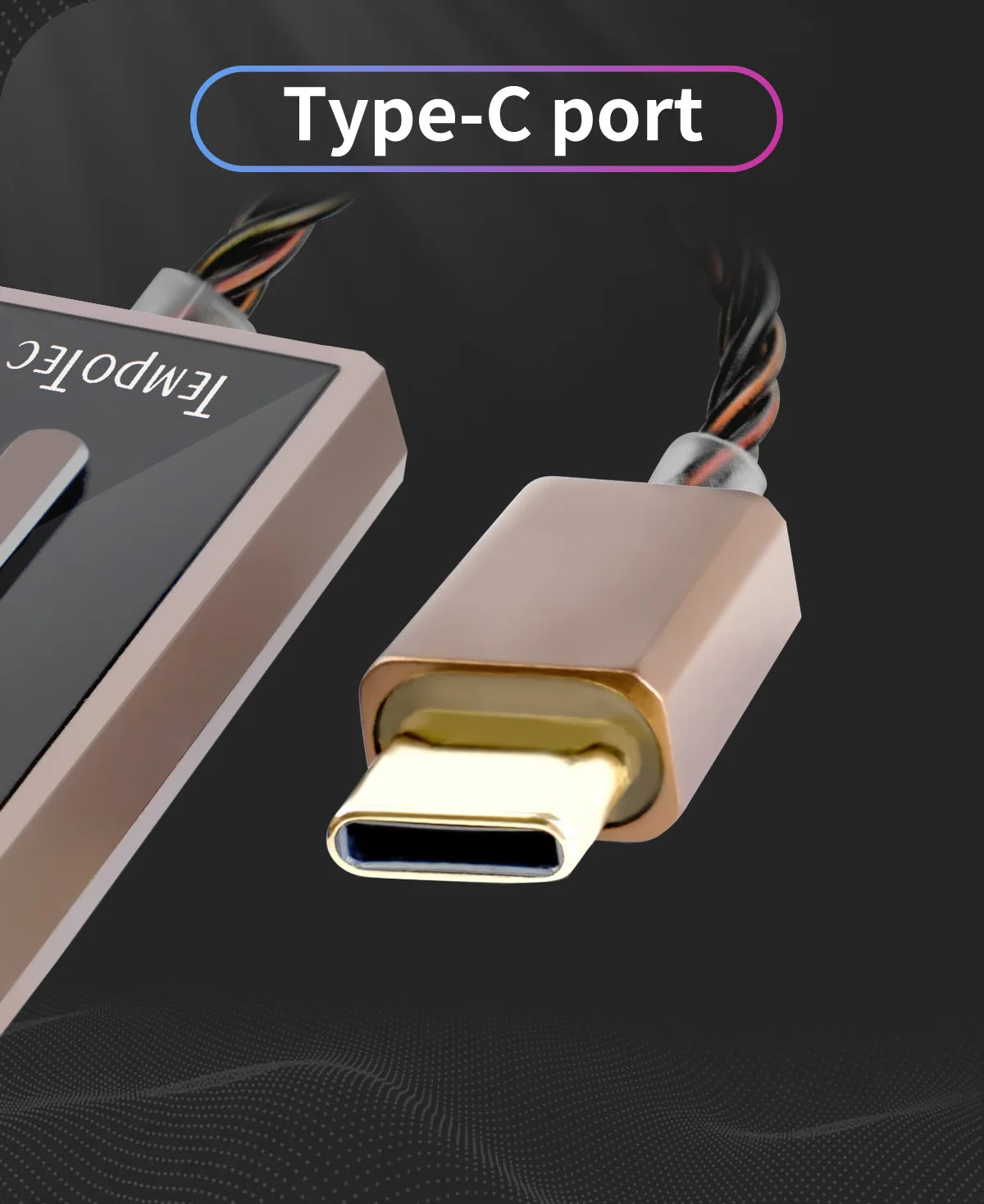

Connection to Android Phone with Type-C port

Connection with Laptop/Desktop

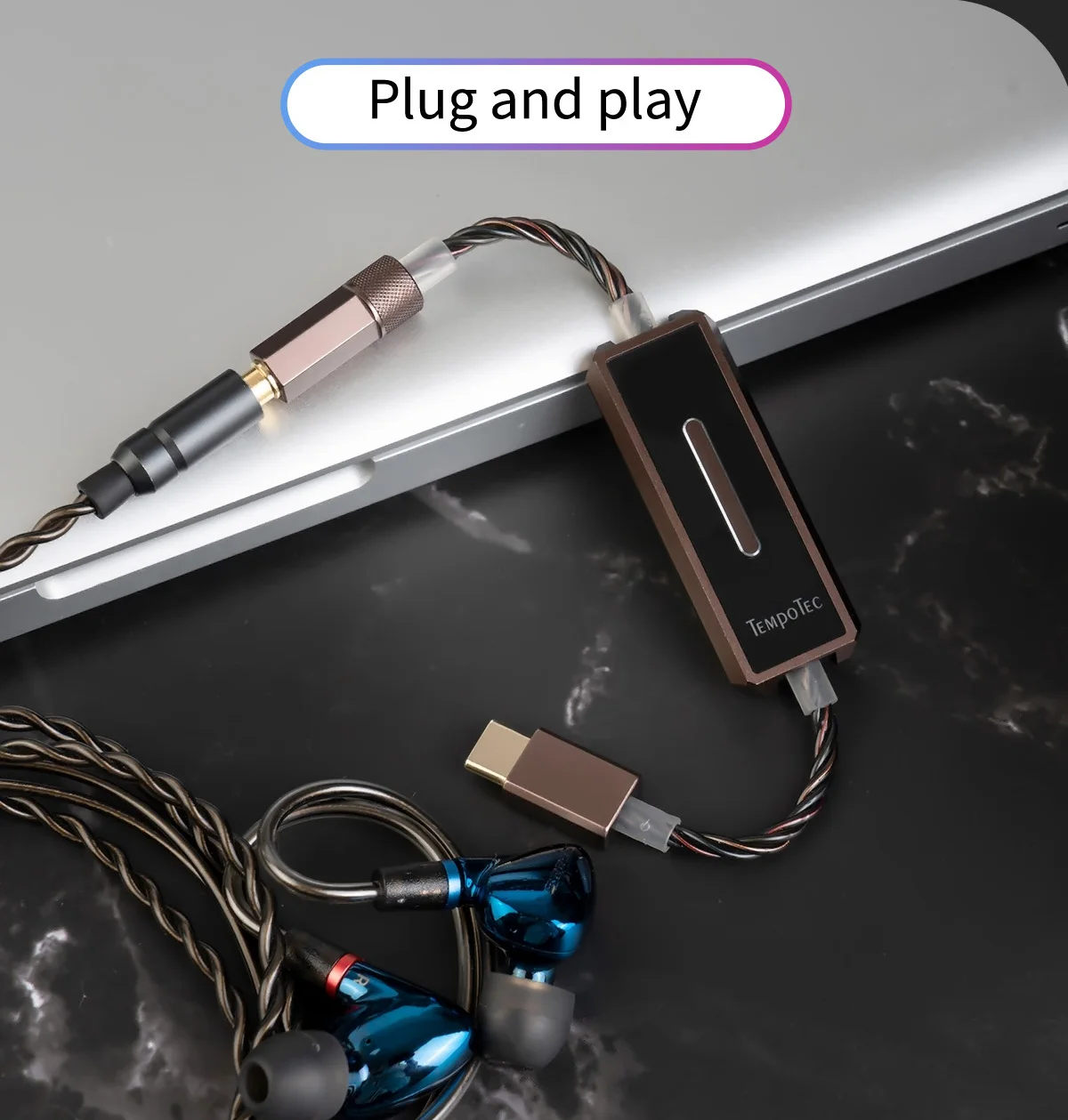

Plug and play

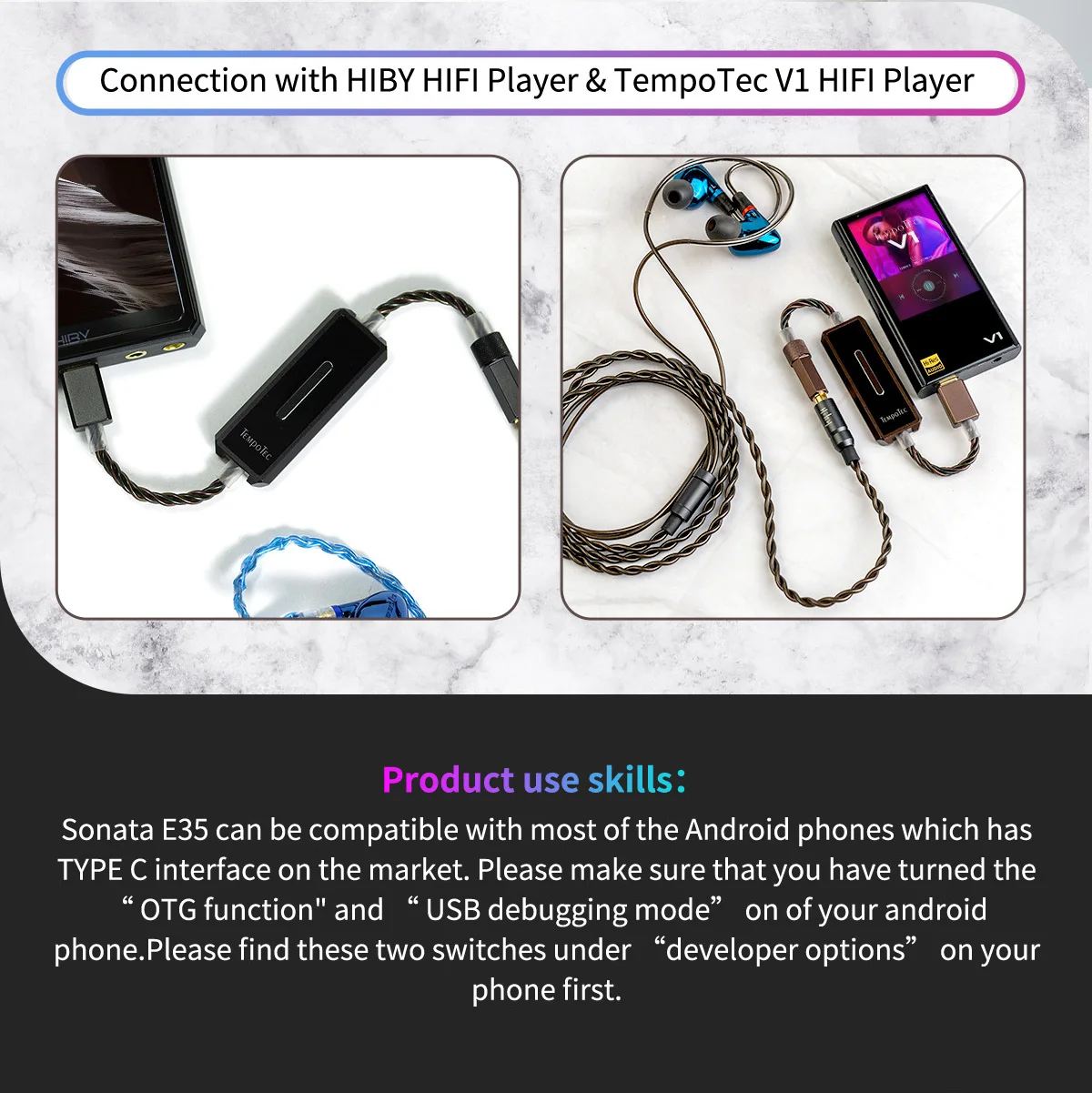

Connection with HIBY HIFI Player & TempoTec V1 HIFI Player

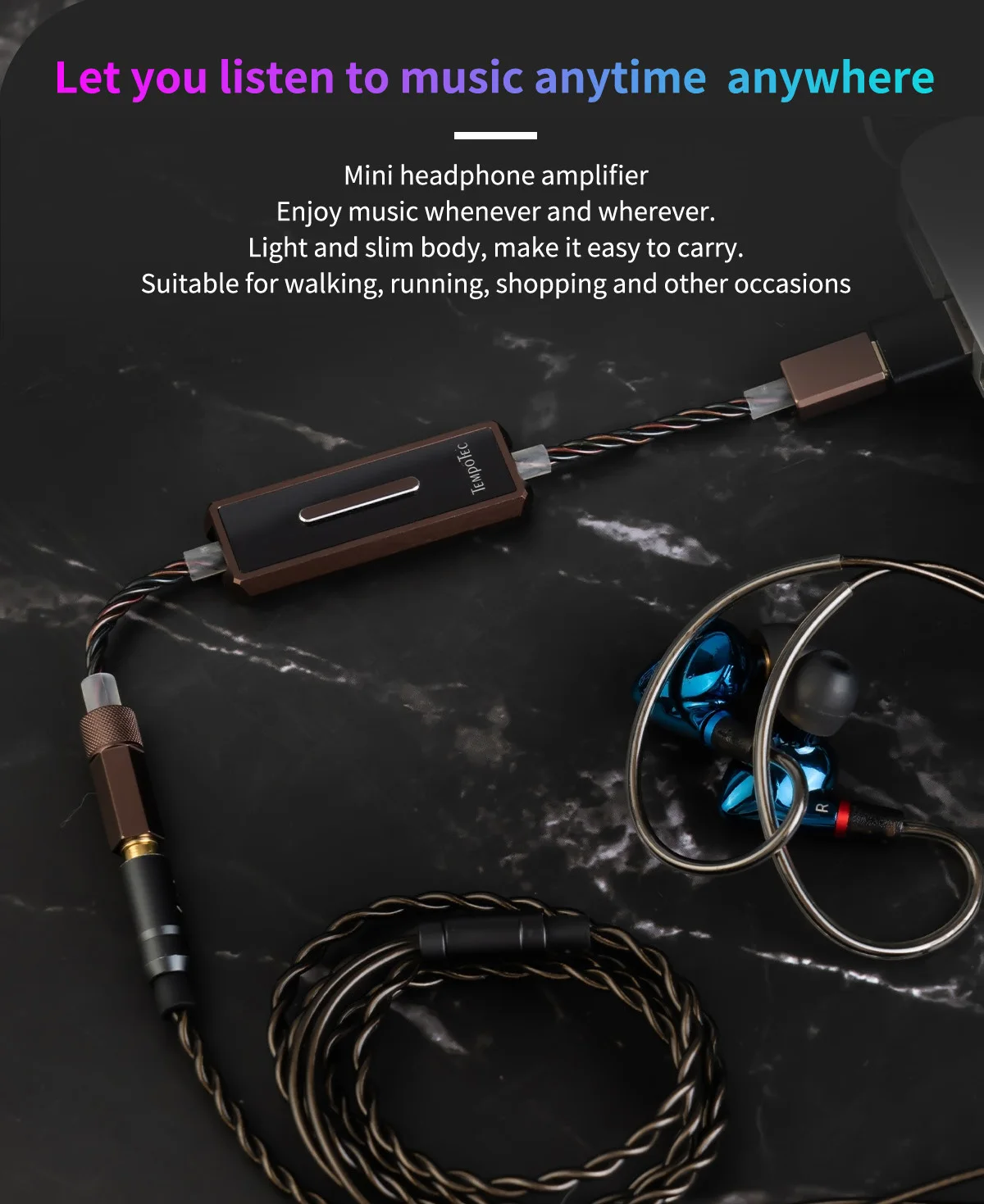

Mini headphone amplifier

Enjoy music whenever and wherever.

Light and slim body, make it easy to carry.

Suitable for walking, running, shopping and other occasions

Packing Included:

1* Sonata E35
1* Adapter(female type-c to maleUSB-A)

1. Let's see what others say about the Sonata E35 ?

Overall Sound:
The Sonata E35 has an overall balanced sound signature that has a small bump in the subbass.

The rumble of the subbass is put slightly forward, with an average decay. Midbass sounds clean, natural, and with good texture. The weight in this section seems to be at just the right spot.

The mids are also clean, natural sounding, but have a bit of an added thickness that affects both lower and upper mids. Despite that, vocals still sound open and airy.

Just like the mids, the highs sound natural. The reach is just marginally increased, with the decay staying just average. Although there are times where the upper treble gets a bit grainy.

Soundstage has adequate expansion. The height has a little bit more focus than the depth. Imaging is slightly above average as well as the layering and separation of instruments.

2. Let's see what others say about the Sonata E35 ?

The sonata e35 has a warm to neutral sound representation that delivers a very controlled bass and natural treble extension.

Bass:
It has a very light mid bass elevation that adds good punch and impact to the sound, the rest of the bass is fast, controlled and wont try to be the star of the show. With pop, rap or rock music it delivers precise and detailed attacks but if you want extra bass or just love a lot of bass this device might not please you.

Mids:
The midrange has a warm tonality that helps to achieve natural sound reproduction and good timbre, this midrange also has good weight on it and feels smooth. Instrument separation is above average and the soundstage has good depth. It won't try to push forward all details on the recording so expect a forgiving midrange.

Highs:
Treble has average extension and I didn't experience added dynamism or extra emphasis on it. This is the kind of treble that matches with most earphones because of the neutral tuning on it. With metal, orchestras and classical music the treble performs correctly.

3. Let's see what others say about the Sonata E35 ?

What Tempotec has achieved on the Sonata HD Pro have been improved further with the E35. The E35 to my ears is a much more refined, cleaner and technically more capable dongle. The high-resolution nature of the Sonata HD Pro (which everyone like) is here with the E35 too, but now it is presented in a much more refined and less sterile manner. Treble, midrange and bass are neutral and balanced, there might be some slightest hint of warmth in the sound reproduction but it is nicely done, and hard to notice without some serious comparison. In general, I really love the sound quality of the E35 and think that it is remarkable for the asking money.

Treble is transparent and extensive, the midrange is clean and detailed, and able to portray some emotional cue in the vocal without any problem, the bass is very good and able to deliver some drive and detail, there is ample level of detail in the representation, but it is a slightly more ‘distant’ than the Sonata HD Pro to my ears, I see this as a good thing since I don’t really like my music coming out as too upfront to my face.

The soundstage has been improved too, don’t expect a humongous soundstage out of it, but the shape and space are generous. Imaging is very good, playing some Symphonies and it is very easy to track the instrument placement in the song. To be honest I really don’t have anything to dislike for the Sonata E35. The music just sounded like how it should sound without adding anything or subtracting anything, everything sounded as natural as I would like.
